Boat Windshield Frame Extrusion

Boat Windshield Frame Extrusions play a crucial role in the design and construction of boats, particularly in providing structural strength, corrosion resistance, and aesthetic appeal. They are typically made from various series of aluminum alloys, each offering a range of performance advantages to meet the diverse needs of boat construction.

Boat Windshield Frame Extrusion Aluminum Alloy Selection

1000 Series Aluminum Alloys

Features: 1000 series aluminum alloys offer excellent corrosion resistance and good formability, making them ideal for applications that are not subjected to mechanical stresses. These alloys have high purity, and as a result, they perform well in terms of corrosion resistance and ease of processing.

Applications: 1000 series aluminum alloys are typically used for structural parts or decorative components where strength requirements are lower, especially suitable for non-load-bearing parts or internal components of the boat.

Common Alloys: 1060, 1100, etc.

2000 Series Aluminum Alloys

Features: 2000 series aluminum alloys are characterized by high strength, making them suitable for components subjected to larger mechanical loads. However, they have relatively poor corrosion resistance, and therefore require additional surface treatments, such as anodizing, to improve their durability.

Applications: 2000 series aluminum alloys are commonly used in boat components that require high strength. However, due to their inferior corrosion resistance, they typically require surface treatments to enhance their durability in marine environments.

Common Alloys: 2011, 2024, etc.

3000 Series Aluminum Alloys

Features: 3000 series aluminum alloys offer good formability and corrosion resistance, making them suitable for medium to low-strength applications. Compared to the 2000 series, the 3000 series offers better corrosion resistance, which is why they are more commonly used in boat manufacturing.

Applications: 3000 series aluminum alloys are commonly used in boat components that require good corrosion resistance but do not have particularly high strength requirements, such as decorative parts or lightweight structural components.

Common Alloys: 3003, 3004, etc.

5000 Series Aluminum Alloys

Features: 5000 series aluminum alloys exhibit exceptional corrosion resistance, making them ideal for use in marine environments. They also offer good weldability and formability, along with high strength, making them very suitable for boat construction and other applications requiring high corrosion resistance. 5000 series aluminum alloys are particularly outstanding in resisting seawater corrosion.

Applications: 5000 series aluminum alloys are widely used in manufacturing boat components such as hulls, frame structures, and windshield frames. They are especially suitable for parts that need to withstand significant mechanical stresses while also resisting seawater corrosion.

Common Alloys: 5052, 5083, 5086, etc.

6000 Series Aluminum Alloys

Features: 6000 series aluminum alloys offer good strength, corrosion resistance, and formability. They are typically heat-treated (such as T6 treatment) to increase their strength, which makes them widely used in boat structures that require higher strength. Additionally, the corrosion resistance and workability of 6000 series alloys make them suitable for components with complex designs.

Applications: 6000 series aluminum alloys are commonly used in boat windshield frame extrusions, especially for applications requiring a combination of strength, corrosion resistance, and workability.

Common Alloys: 6061, 6063, etc.

Boat windshield frame extrusions commonly use aluminum alloys from various series, selected based on specific requirements ranging from high strength to high corrosion resistance. 1000 series and 3000 series alloys are suitable for applications with lower strength and higher corrosion resistance needs, while 5000 series and 6000 series offer better overall performance, meeting the dual demands of strength and corrosion resistance in boat construction. Although the 2000 series has high strength, its relatively poor corrosion resistance usually requires additional surface treatment for use in marine environments such as boats.

Boat Windshield Frame Extrusion Structural Design Requirements

The design of boat windshield frames not only needs to consider aesthetics and ease of manufacturing but also ensure durability in harsh marine environments. By optimizing extrusion designs, it is possible to ensure that the frames are lightweight, strong, and possess excellent corrosion resistance.

Strength Requirements: The choice of aluminum alloy depends on the pressure the frame must withstand and the operational environment of the boat. Typically, the frame needs to resist wind pressure and impact forces during high-speed travel.
Corrosion Resistance: Since boats are often exposed to saltwater and moisture, the frame material must have outstanding resistance to marine environmental corrosion. 5000 series and 6000 series aluminum alloys are particularly suitable for this purpose.
Anodizing Treatment: To enhance the corrosion resistance and appearance of the aluminum alloy, extrusion parts are often subjected to anodizing treatment. Anodizing not only improves surface hardness but also gives the aluminum alloy a decorative finish, making it more suitable for long-term use.

Boat Windshield Frame Extrusion Manufacturing Processes

Boat windshield frame extrusions are formed by aluminum alloy extrusion, which offers high precision and good surface quality.

Extrusion Forming: According to design requirements, aluminum alloy material is extruded under high pressure to form the desired cross-sectional shape. The extrusion process causes the aluminum alloy material to set during cooling, forming components with consistent performance.
Heat Treatment: For some aluminum alloys, such as 6061, 6063, heat treatment (such as T5, T6, etc.) is required after extrusion to improve their strength and corrosion resistance.
Anodizing: To enhance corrosion resistance and appearance, the frames are often anodized. This process not only improves surface hardness but also gives the frame a uniform color and sheen.

Boat Windshield Frame Extrusion Performance Advantages

Corrosion Resistance: The use of 5000 and 6000 series aluminum alloys is particularly suitable for long-term use in marine environments, effectively resisting seawater, salt spray, and moisture corrosion of the material.
Strength and Lightweight: Compared to other metal materials, aluminum alloy frames are lighter, which helps reduce the overall weight of the vessel. The strength of 6061 and 6063 aluminum alloys is sufficient to support the structural requirements of the windshield frame.
Aesthetic Appeal: The surface after anodizing has excellent decorative effects, making the frame not only functional in protection but also enhancing the modern appearance of the vessel.

Boat Windshield Frame Extrusion Applications

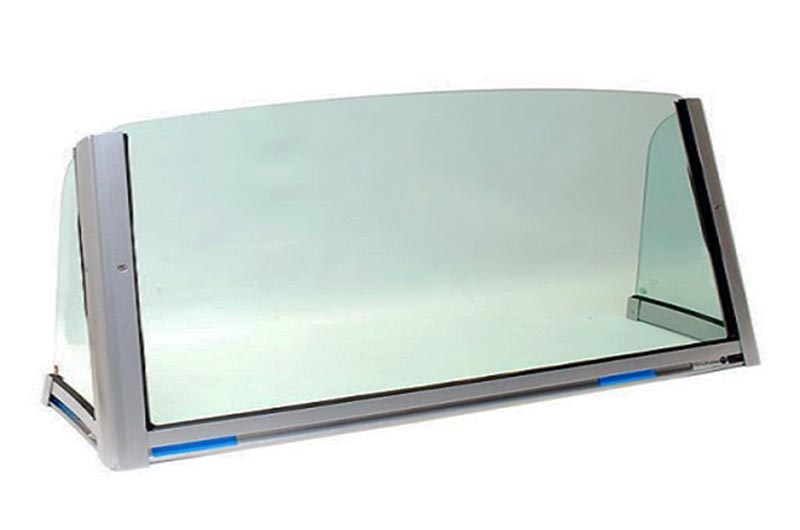

Boat Windshield Frame

The boat windshield frame is a structural component used to support the cabin windshield of a vessel. Since the cabin glass is typically exposed to wind, rain, seawater, and solar radiation, the material and design of the frame must have sufficient strength, corrosion resistance, and impact resistance.

Application Features:

Strength and Impact Resistance: As the windshield needs to withstand strong wind pressure during high-speed sailing, the boat windshield frame must have strong wind pressure resistance and impact resistance. Aluminum alloys (such as 6061, 6063, 5083) possess excellent strength and toughness, effectively absorbing external impact forces.

Corrosion Resistance: The frame material is often exposed to seawater, so corrosion resistance is crucial. 5000 series aluminum alloys (such as 5083, 5086) provide excellent resistance to seawater corrosion, extending the service life of the structure.

Processing and Aesthetics: Aluminum alloy extrusions can be custom processed according to vessel design requirements, and anodizing treatment can enhance the surface's corrosion resistance while giving the frame a smooth, uniform appearance.

Typical Applications: Used in the cabins and control console areas of various types of vessels, including high-speed boats, passenger ships, and cargo ships, ensuring the safety visibility of the crew during high-speed navigation.

Offshore Platforms and Yachts

Offshore platforms and yachts are high-end marine applications that typically have higher design and material requirements. Particularly in marine environments, the frame's corrosion resistance, structural stability, and aesthetic design are very important.

Application Features:

Corrosion Resistance: Yachts and offshore platforms are often exposed to salt mist, seawater, and humid environments for long periods. 5000 series aluminum alloys (such as 5083, 5086) and 6000 series aluminum alloys (such as 6061, 6063) have excellent corrosion resistance and can effectively resist seawater corrosion, extending the product's service life.

Aesthetic Design and Durability: Yachts and offshore platforms typically require beautiful designs that can maintain durability for extended periods. Anodized surface treatment improves the appearance of the aluminum alloy and also enhances corrosion resistance. Especially for high-end yachts, aluminum alloy frames are often combined with elegant designs to provide both style and practicality.

Wind Pressure Resistance and Safety: Yachts, particularly during high-speed navigation, need windshield frames with extremely high wind pressure and impact resistance. The strength and lightweight characteristics of aluminum alloys effectively support large-area windshields and withstand external pressures.

Typical Applications: In luxury yachts and offshore platforms' cabins, leisure areas, decks, and other locations, the windshield frame not only provides safety and protection but also enhances the aesthetics and comfort of the vessel.

Naval Ships

Windshield frames on naval ships have special application requirements, typically requiring higher impact resistance, strength, and corrosion resistance to perform well under extreme marine conditions and combat situations.

Application Features:

Impact Resistance: Naval ships are often exposed to extreme marine conditions, and the frames must withstand pressures from high winds, waves, and even explosive impacts. High-strength aluminum alloys (such as 5083, 6061) possess sufficient toughness and strength to handle these extreme conditions.

Corrosion Resistance and Weather Resistance: Naval ships serve in marine environments for many years, and the aluminum alloy frames must provide long-term corrosion protection, particularly when exposed to salt mist and seawater. 5000 series aluminum alloys are particularly outstanding in such applications.

Fatigue Resistance: Since naval ships often operate in harsh sea conditions for extended periods, the frame materials must have good fatigue resistance and durability to ensure that the materials do not deteriorate or fail over time.

Typical Applications: The windshield support structures on naval ship bridges, command towers, and other key external areas exposed to the elements.

Small Commercial Fishing Boats

Small commercial fishing boats are generally used for near-shore fishing operations, so the design of their windshield frames focuses on economy, durability, and lightweight properties while also adapting to relatively harsh marine environments.

Application Features:

Corrosion Resistance and Strength: Although small fishing boats do not have as high structural strength requirements as naval ships and yachts, they still need sufficient strength to withstand strong winds, waves, and other external forces. 5000 series aluminum alloys (such as 5052, 5083) offer excellent corrosion resistance and moderate strength, making them suitable for this application.

Economy and Processability: Small fishing boats typically require high cost-efficiency, so aluminum alloys are usually selected from more economical 3000 series (such as 3003, 3004) or low-cost 1000 series aluminum alloys. These alloys offer good processability and formability and are easy to produce quickly.

Lightweight: Fishing boats often require lightweight structural materials to improve fuel efficiency and operational ease. The lightweight properties of aluminum alloys make them an ideal choice for small fishing boats.

Typical Applications: Windshield frames on small fishing boats, protective structures around the cabins, ensuring that fishermen can operate safely in harsh weather conditions.

Boat windshield frame extrusions are made from high-quality aluminum alloys, particularly 5000 and 6000 series aluminum alloys, which, due to their outstanding corrosion resistance, lightweight high strength, excellent processing performance, and attractive surface finish, are widely used in various vessels, yachts, and offshore platforms. Through surface treatments like anodizing, their durability and decorative features are enhanced, providing ideal solutions for boat design.
