5456 Aluminum Properties

Last Updated :

5456 aluminum alloy is a forged aluminum-magnesium alloy known for its excellent weldability and stability. We offer sheet materials, plate materials, and custom extrusions that meet ASTM B928 and B209 standards.

5456 aluminum is a member of the 5000 series aluminum-magnesium alloys, renowned for its outstanding corrosion resistance and weldability. This alloy is widely used in structural, marine, and pressure vessel applications.

5456 aluminum alloy is a forged aluminum-magnesium alloy designed to achieve structural integrity and corrosion resistance in harsh environments. This alloy is an ideal choice for marine applications, offering excellent weldability and stability even in high-magnesium conditions. Sheet materials, plate materials, and custom extrusions that meet ASTM B928 and B209 standards are available.

5456 Aluminum Features

5456 aluminum is a non-heat-treatable forged alloy, primarily alloyed with magnesium.

  • High corrosion resistance: especially in marine and industrial environments.
  • Good strength and weldability: making it suitable for welded structures.
  • Low-temperature strengthening: its performance can even improve at subzero temperatures.

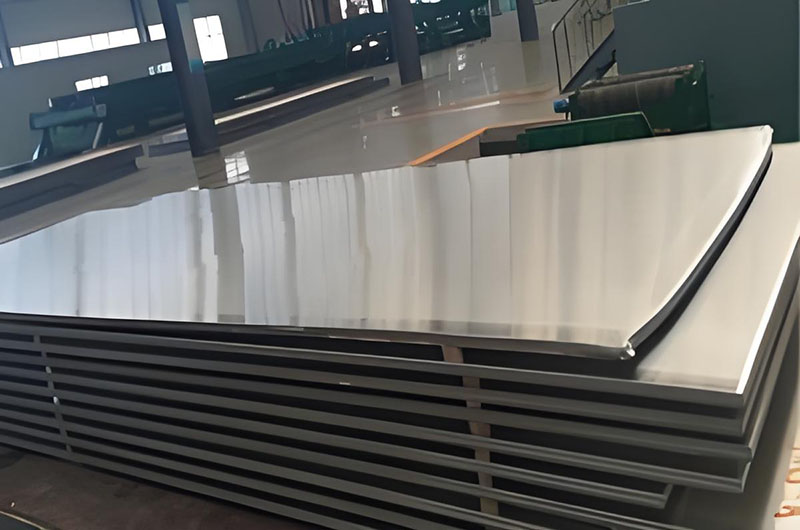

5456 Aluminum Plate

5456 Aluminum Chemical Composition

This alloy typically contains:

  • Aluminum (Al): 93.9%
  • Magnesium (Mg): 5.1%
  • Chromium (Cr): 0.12%
  • Manganese (Mn): 0.8%

These precise proportions give the alloy its characteristics and contribute to its overall performance in demanding applications.

5456 Aluminum Physical Properties

  • Density: approximately 2.66 g/cm³ (0.3489 lb/in³)
  • Other properties: The density of the alloy supports its lightweight characteristics while maintaining strength.

5456 Aluminum Mechanical Properties

  • Modulus of elasticity: between 70 and 80 GPa (10,152–11,603 ksi)
  • Poisson's ratio: approximately 0.33
  • Strength: Since the alloy is not strengthened through heat treatment, its high strength and moderate ductility are primarily achieved through cold working.

5456 Aluminum Thermal Properties

5456 aluminum exhibits:

  • Good thermal conductivity: a typical value of approximately 116 W/m·K.
  • Thermal expansion: approximately 23.9 × 10⁻⁶/°C, indicating moderate expansion with temperature.

5456 Aluminum Corrosion Resistance

  • Excellent marine performance: outstanding resistance to saltwater, making it an ideal choice for marine applications.
  • Stress corrosion cracking (SCC): more likely to occur at high Mg content; can be mitigated through stabilization with H116/H321 tempering.
  • Temperature sensitivity: avoid prolonged use above 65°C (150°F) to prevent sensitization and intergranular corrosion.
  • Intergranular corrosion: increased cold working rates can exacerbate intergranular corrosion, but high magnesium content (≥5%) effectively suppresses exfoliation corrosion.
  • Microstructure stability: during hot working, the β-phase size decreases with increasing working rate, which helps improve microstructural uniformity and indirectly enhances corrosion resistance.

5456 Aluminum Standards and Forms

  • Standards: ASTM B209 (Sheet/Plate), AMS 4007, EN 573-3.
  • Available Forms: Sheet, Plate, Extrusions, Forgings.

5456 Aluminum Surface Treatment

Anodizing: Feasible, but the appearance may differ from 6xxx alloys. Enhances corrosion resistance and wear resistance.

5456 Aluminum Manufacturing and Welding

  • Weldability: Good with conventional methods (TIG, MIG). Filler alloys: 5556 or 5356.
  • Post-weld Strength: Strength in the heat-affected zone (HAZ) may be reduced; design considerations are necessary.
  • Machinability: Fair (improved with proper tools and lubrication), but not as good as 6xxx alloys.

5456 Aluminum Manufacturing Characteristics

  • Weldability: Arc welding is the preferred method, producing high-quality joints.
  • Cold Forming: Can be cold-worked, but excessive compression should be avoided to prevent stress corrosion.
  • Annealing: Use heat treatment (e.g., heating to approximately 343°C, then air cooling) to relieve residual stresses.

5456 Aluminum Welding Performance

  • Filler Material Compatibility: ER5456 welding wire (containing small amounts of Mn, Ti) is compatible with 5456 alloy for TIG and oxy-acetylene welding, offering high resistance to hot cracking and corrosion.
  • Friction Stir Welding Optimization: The use of double-sided friction stir welding (FSLW) allows for efficient joining of plates with varying thicknesses, with joint strength approaching that of the base material.

5456 Aluminum Comparison with Similar Alloys:

  • 5083/5086: Lower Mg content (3–4.5%), slightly lower strength, but better SCC resistance. 5456 has higher strength, suitable for more demanding applications.
  • 5052: Lower Mg content (2.2–2.8%), used in less demanding environments.

5456 Aluminum Applications

  • Marine Structures: Used for ship decks, hull plates, and other marine components.
  • High-strength Welded Structures: Its excellent weldability and strength make it ideal for structural applications.
  • Pressure Vessels and Tanks: Its corrosion resistance and mechanical properties ensure safety and longevity.

5456 Aluminum Limitations and Considerations

  • SCC Risk: High Mg content requires appropriate temper selection (H116/H321) for critical applications.
  • Temperature Limitations: Due to the risk of sensitization, not suitable for high-temperature environments.

5456 aluminum is a high-strength marine-grade alloy valued for its corrosion resistance and weldability. While less common in certain applications than 5083/5086, it excels in situations requiring higher Mg content and strength. Proper temper selection and design considerations are crucial to mitigate SCC risks.

5456 aluminum combines a balanced chemical composition with physical and mechanical properties, making it a reliable choice for applications requiring strength and corrosion resistance. Its ability to maintain integrity in harsh environments (especially at low temperatures) further enhances its versatility in structural and marine applications.
