What is marine grade 5083 Aluminium?
Last Updated :

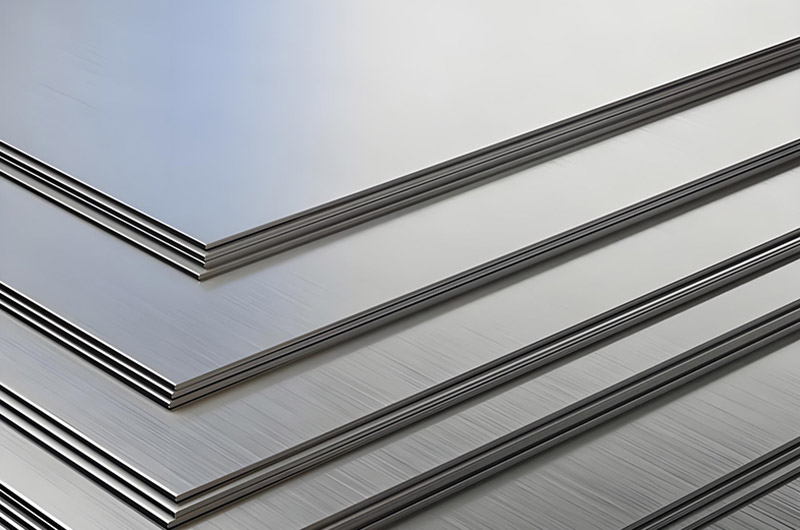

Marine grade 5083 aluminum is a high-performance aluminum alloy specifically designed for marine environments, belonging to the 5xxx series Al-Mg anti-corrosion aluminum alloys.
Marine grade 5083 aluminum is a non-heat-treatable Al-Mg alloy in the 5000 series, typically containing 4.0–4.9 wt% magnesium, 0.4–1.0 wt% manganese, 0.05–0.25 wt% chromium, and trace amounts of silicon, iron, titanium, copper, and zinc.
Marine grade 5083 aluminum possesses the highest strength among all non-heat-treatable aluminum alloys, retains its strength after welding, and exhibits outstanding corrosion resistance in seawater.
Marine grade 5083 aluminum is supplied in marine-certified tempers (primarily H116, H321, and H112), in accordance with ASTM B209/B928, AS/NZS 1734, and related standards. It is the preferred material for ship and offshore platform hull plates, keels, and main structures, and is also used in cryogenic, pressure vessel, and armor applications.
Haomei marine grade 5083 aluminum complies with standards from BV (Bureau Veritas), LR (Lloyd's Register), ABS (American Bureau of Shipping), and CCS (China Classification Society).
Marine grade 5083 Aluminium Chemical Composition
Alloying Elements
- Magnesium (4.0–4.9%): Provides solid solution strengthening and primary corrosion resistance
- Manganese (0.4–1.0%): Promotes grain refinement and enhances strength
- Chromium (0.05–0.25%): Enhances resistance to exfoliation corrosion
- Other trace elements (Silicon ≤ 0.4%, Iron ≤ 0.4%, Titanium ≤ 0.15%, Copper ≤ 0.1%, Zinc ≤ 0.25%): Balance casting cooling effects and manufacturing process considerations
Microstructure
The high magnesium content provides a fundamentally uniform fine-grained microstructure after rolling or extrusion, which is further optimized by cold working in the “H” temper condition. This microstructure ensures both strength and excellent fatigue resistance.
Marine grade 5083 Aluminium Mechanical Properties
5083 Marine Aluminium Strength
- Ultimate Tensile Strength (UTS): ~317 MPa (46 ksi)
- Yield Strength (0.2% offset): ~228 MPa (33 ksi)
- Elongation: 10–16%
These values are typically measured in the H321 temper condition, representing the highest strength among all non-heat-treatable aluminum alloys.
5083 Marine Aluminium Temperature Characteristics
- Service Temperature: Recommended maximum of 65 °C
- Low-Temperature Performance: At -195°C, tensile strength (UTS) increases by about 40%, yield strength increases by about 10%, while maintaining excellent fracture toughness, making 5083 suitable for cryogenic applications.
5083 Marine Aluminium Formability and Fatigue Resistance
- Good ductility and formability in O and H tempers enable complex forming processes.
- High fatigue resistance allows it to withstand cyclic loads in marine structures.
5083 Marine Aluminium Corrosion Resistance
Seawater Corrosion
The Al-Mg matrix in 5083 forms a stable, adherent oxide film that resists pitting and general corrosion in saltwater environments. Its performance surpasses that of 5052 and rivals that of 5086 in durability.
Intergranular Corrosion
While intergranular corrosion is typically minimal in H116 and H321 tempers, improper heat treatment may lead to such corrosion; controlled additions of Cr and Mn help reduce this risk.
5083 Marine Aluminium Fabrication and Weldability
Welding
Preferred methods are arc welding (MIG, TIG). Due to its non-heat-treatable nature, 5083 aluminum maintains excellent post-weld strength and does not suffer from hot cracking or reduced corrosion resistance.
5083 Marine Aluminium Temper Designations
- H116: Stabilized and tested for exfoliation corrosion per marine standards
- H321: Strain hardened then stabilized to prevent sensitization
- H112: Annealed condition, suitable for further processing
| Temper | Description | Typical Applications |
| 5083 H116 | Stabilized treatment, excellent corrosion resistance and seawater stability | Submerged marine components, such as hulls and keels |
| 5083 H321 | Stabilized temper with excellent corrosion resistance, especially suitable for marine environments | Submerged marine components, such as hulls and keels |
| 5083 O | Fully annealed, good plasticity, easy for deep drawing and complex forming | Deck fittings, brackets, and formed parts requiring moderate strength |
| 5083 H111 | Lightly strain-hardened, balances moderate strength with good formability | Deck fittings, decorative parts, moderately stressed structural components |
| 5083 H112 | Hot-rolled condition, suitable for structural materials requiring good weldability and strength | Hull structural parts, bulkheads, partitions, welded frames, reinforcements |
Standards and Specifications for 5083 Marine Aluminium
- ASTM B209 and ASME SB209: Standards for sheets and plates used in pressure vessels and general applications.
- ASTM B928 / AS/NZS 1734: Standards for marine plates requiring DNV certification.
- AMS 4057 / AMS 4058: Aerospace industry requirements for temper and mechanical properties.
Applications of 5083 Marine Aluminium in the Shipbuilding Industry
- Hulls and Superstructures: Used for outer hulls, decks, frames, and bulkheads due to weight-saving, cost efficiency, and corrosion resistance in sheet, extrusion, and thin plate forms.
- Keels and Longitudinal Members: Connect the bow and stern, ensuring structural integrity in seawater environments.
- Offshore Platforms and Drilling Rigs: Suitable for corrosive marine environments and cyclic loading.
| Application Area | Specific Application Description |
| Shipbuilding | Hull structures (underwater and outer plates), decks, bulkheads, and superstructures (lightweight design enhances fuel efficiency). |
| Marine Infrastructure | Port structures, gangways, and offshore platforms. |
| Fuel Tanks and Fuel Systems | Suitable for freshwater, fuel, and chemical storage tanks due to its non-reactive properties. |
Other Applications
- Cryogenic Containers: Storage tanks and piping operating at liquid nitrogen temperatures, leveraging its higher strength at low temperatures.
- Pressure Vessels: Non-magnetic, corrosion-resistant containers for chemicals and gases.
- Vehicle Armor: Lightweight ballistic protection for military vehicles.
- Transportation: Automotive fuel tanks and aircraft components (utilizing its lightweight strength).
Advantages of 5083 Compared to Other Alloys
5083 vs 5052 Aluminium:
5083 aluminium has a higher magnesium content, greater strength, and better resistance to seawater corrosion, whereas 5052 aluminium is easier to form, making it more suitable for complex designs.
5083 vs 6061 Aluminium:
5083 aluminium outperforms in seawater corrosion resistance, while 6061 aluminium is more suitable for machining and low-stress applications.
Heat Treatment:
Unlike heat-treatable alloys (such as 6061), 5083 aluminium gains strength through cold working (strain hardening) and retains its properties after welding.
Key Considerations
- Welding: Compatible with common welding methods (TIG, MIG), using 5183 or 5356 filler wire to maintain corrosion resistance.
- Limitations: Avoid usage at temperatures exceeding 65°C to prevent degradation of mechanical properties.
Marine-grade 5083 aluminium is the cornerstone of marine engineering, offering a combination of strength, corrosion resistance, and versatility. Its dominance in shipbuilding and offshore applications highlights its reliability in harsh marine conditions. For projects requiring durability in saltwater environments, 5083 remains the top choice.
