5052 marine grade aluminium checkered tread plate sheet
"5052 marine grade aluminum checkered tread plate sheet" is a specialized aluminum product designed to meet the stringent requirements of the marine environment while providing enhanced traction and durability.
The surface of 5052 marine grade aluminum checkered tread plate sheet has a checkered pattern. This design serves two main purposes:
- Enhanced Grip: The raised pattern provides better grip, making it safer to walk on, especially in wet or slippery conditions common in marine environments.
- Aesthetics: The checkered pattern also adds a visually appealing texture to the surface, enhancing the overall appearance of the material.
5052 marine grade aluminum checkered tread plate sheet meets industry standards for marine grade certification. It undergoes rigorous testing to ensure its corrosion resistance, even in harsh saltwater environments.

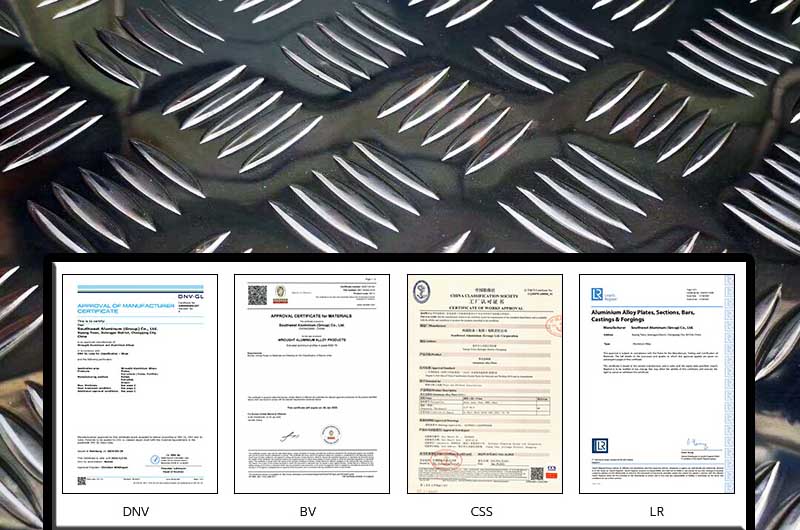

Classification society certification: CCS, DNV, NK, CCS, ABS, BV, LR, KR
One of the most critical properties of 5052 marine grade aluminum is its excellent corrosion resistance. The composition of the alloy, combined with any surface treatment or coating applied, helps protect the material from corrosion caused by exposure to salt water, moisture and other corrosive elements commonly found in marine environments.
5052 marine grade aluminum checkered tread plate sheet chemical composition
5052 is a non-heat treatable alloy consisting primarily of aluminum, magnesium and chromium. This alloy offers excellent corrosion resistance, especially in marine environments where exposure to salt water and moisture is common.
| Element | Chemical composition (%) |
| Al | Rem |
| Si | ≤0.25 |
| Fe | ≤0.50 |
| Cu | ≤0.10 |
| Mn | ≤0.10 |
| Mg | 2.2-2.8 |
| Cr | 0.15-0.35 |
| Zn | ≤0.10 |
| Note:Each:≤0.05;Total:≤0.15 | |
5052 marine grade aluminum checkered tread plate sheet applications
Marine grade aluminum checkered plate, specifically 5052 alloy, is a highly versatile material with a wide range of applications in marine environments due to its exceptional corrosion resistance, strength and lightweight properties.
Marine Vessels
- Hull Construction: 5052 aluminum checkered plate is widely used in the construction of boat hulls due to its corrosion-resistant properties, especially in saltwater environments. Its high strength-to-weight ratio makes it ideal for reducing the overall weight of a ship while maintaining structural integrity.
- Decking: The checkered pattern provides excellent traction, making it suitable for use on deck surfaces, ramps and gangways, improving crew and passenger safety even in wet conditions.
- Bulkheads and Interior Components: Its durability and corrosion resistance make it suitable for bulkheads, interior paneling and other structural components within ships.
Offshore Platforms and Oil Rigs
5052 aluminum checkered plate is used on offshore platforms and oil drilling platforms due to its resistance to seawater corrosion and harsh environmental conditions.
It can be used on walkways, stair treads and decking surfaces where slip resistance and durability are critical.
Marine Equipment and Accessories
- Dock and Pier Construction: Docks are used in dock and dock construction due to their corrosion resistance and high strength, providing a safe walking surface for maintenance and operations.
- Boat Trailers: The lightweight nature of 5052 aluminum makes it suitable for building boat trailers. The tread pattern enhances grip for safe loading and unloading of boats.
Marine Structural Components
- Handrails and Ladders: Its corrosion resistance makes it an excellent choice for manufacturing handrails and ladders on ships and marine structures.
- Storage and Equipment Boxes: 5052 aluminum checkered plate is commonly used to manufacture storage boxes and equipment enclosures on ships and offshore platforms due to its lightweight and durable properties.
Recreational Marine Applications
- Yacht Construction: In luxury yacht construction, 5052 aluminum checkered panels are used for decorative purposes on exterior surfaces such as transoms, swim platforms and decorative details.
- Fishing Boats and Pontoon Boats: The corrosion-resistant properties of this alloy make it suitable for fishing boats and pontoon boats that are frequently in contact with water.
Marine Infrastructure
- Seawalls and Breakwaters: Checkered boards are used in the construction of seawalls and breakwaters because they resist corrosion from salt water and waves.
- Navigation Aids: Navigation aid components such as buoys and markers are often constructed of 5052 aluminum pattern plates to ensure their durability and longevity in the marine environment.
Essentially, 5052 marine grade aluminum checkerboard is widely used in all aspects of marine engineering and construction, providing the corrosion resistance, strength and lightweight properties necessary for marine applications.
In summary, 5052 Marine Grade Aluminum Checkered Plate combines superior corrosion resistance, enhanced traction, lightweight construction and versatility, making it ideal for a variety of marine applications where durability and safety are critical.
