5086 marine grade aluminium checkered tread plate sheet
5086 marine grade patterned aluminum plate is an aluminum plate specially designed for use in marine environments. It is made from aluminum alloy 5086, a material known for its excellent corrosion resistance, especially in salt water environments. The checkered tread pattern provides extra traction, making it suitable for use in areas where slip resistance is important, such as boat decks, docks and other marine applications.
5086 marine grade aluminum checkered tread plate sheet has higher strength and corrosion resistance than 5052 and 5083 plates, making it ideal for many marine and marine applications. This material is particularly suitable for applications requiring long-term exposure to salt water environments because it resists salt water corrosion and maintains good appearance and performance.
5086 Marine Grade Aluminum Pattern Plate meets industry standards for marine grade certification. It undergoes rigorous testing to ensure its corrosion resistance, even in harsh saltwater environments.
Haomei Aluminum marine grade aluminum checkered tread plate sheet classification society certification: CCS, DNV, NK, CCS, ABS, BV, LR, KR
Compared with other aluminum alloys, 5086 pattern aluminum plate has better formability, stamping and weldability because it is not heat treated. This means manufacturers can more easily form 5086 aluminum sheets into a variety of shapes and sizes to meet the needs of different applications without having to worry about the processing of the material affecting its performance.
Because 5086 aluminum alloy is not heat treated, it is easy to form, stamp and weld. 5086 aluminum pattern plates are used for: hulls, superstructures, gangways, ramps, transport rollers, support structures for marine applications.
5086 marine grade aluminum checkered tread plate sheet characteristics
- 1. Excellent corrosion resistance: 5086 aluminum alloy has excellent corrosion resistance and is especially suitable for marine environments. It can withstand salt water, humid climate and other corrosive media, reducing material damage caused by corrosion.
- 2. Lightweight: Aluminum alloy itself is a lightweight material, so 5086 marine pattern plate is lightweight and easy to handle and install. This makes it ideal for use in ships and marine structures as it reduces overall weight, helping to improve fuel efficiency and load carrying capacity.
- 3. High strength: Despite being lightweight, 5086 alloy still has good strength and structural stability and is able to withstand heavy loads and impacts on ships and marine structures. This high strength makes it excellent in applications that require resistance to high waves, strong winds and other harsh marine conditions.
- 4. Good weldability and formability: 5086 marine pattern plate is easy to weld and can be formed by a variety of processing methods. This enables manufacturers to tailor panel sizes and shapes to customers’ specific requirements to meet the needs of different applications.
- 5. Excellent skid resistance: The surface of the pattern plate is designed with raised diamond patterns or stripes, which provides additional friction and anti-skid performance. This makes 5086 marine tread plate ideal for use in slippery environments such as ship decks, docks and walking platforms.
- 6. Non-magnetic: Aluminum alloy is a non-magnetic material, so 5086 marine pattern plate will not be subject to magnetic interference, which may be an important consideration in some marine applications.
5086 marine pattern plate has broad application prospects in the fields of marine engineering and shipbuilding due to its excellent corrosion resistance, lightweight, high strength, good processability and anti-skid properties.
5086 marine grade aluminum checkered tread plate sheet specifications
- Material: 5086 marine grade aluminum alloy, known for its excellent corrosion resistance and strength.

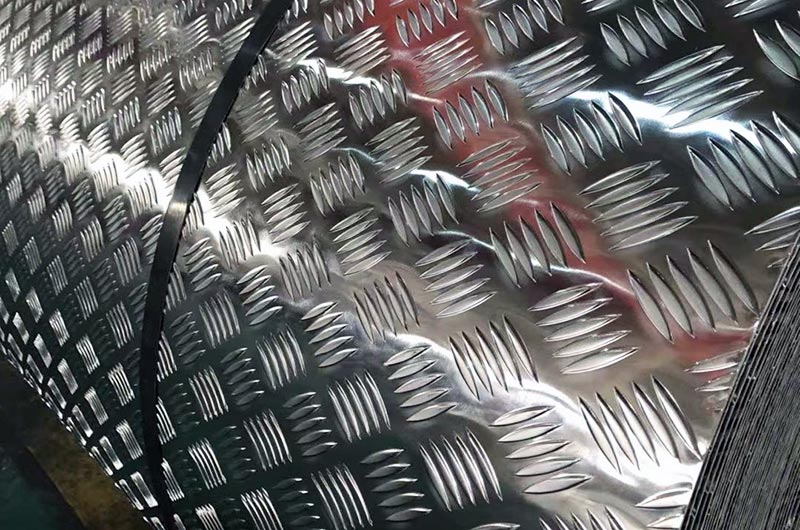

- Pattern: 2 bars, 3 bars, 5 bars, diamond.
- Thickness: Typically ranges from 1.5 mm to 6 mm, depending on specific application and load requirements.
- Condition: Aluminum plate is typically supplied in H116 or H321 condition, providing the best combination of strength and corrosion resistance.
- Rib Height: The height of the ribs or protrusions on the surface varies depending on the pattern selected and the intended application. Standard rib heights range from a few millimeters to several centimeters, providing varying levels of traction and load-bearing capacity.
5086 Marine Grade Patterned Aluminum Plate provides a versatile solution for a variety of marine applications, providing reliable performance, safety and longevity in harsh marine environments. The choice of pattern, thickness, hardness and other specifications depends on the specific requirements of each application to ensure optimal functionality and durability.
5086 marine grade aluminium checkered tread plate sheet Chemical Composition
| Alloy | 5086 | |
| Si | ≦0.4 | |
| Fe | ≦0.5 | |
| Cu | ≦0.1 | |
| Mn | 0.20-0.70 | |
| Mg | 3.50-4.50 | |
| Cr | 0.05-0.25 | |
| Zn | ≦0.25 | |
| Ti | ≦0.15 | |
| Zr | - | |
| Standard | EN573 | ASTM b928 |
5086 marine grade aluminum checkered tread plate sheet surface type
Mill finish 5086 marine grade aluminium checkered tread plate sheet
Bright finish 5086 marine grade aluminium checkered tread plate sheet
| Param | Mill finish Surface | Bright finish Surface |
| Thickness (mm) | 1.00-6.50mm | 1.20-6.50mm |
| Pattern height | Sheet Thickness from 1.0mm to 2.0mm, bar height: 0.50mm | Sheet Thickness from 1.0mm to 2.0mm, bar height: 0.50mm |
| Sheet Thickness from 1.0mm to 2.0mm, bar height: 1.00mm | Sheet Thickness from 1.0mm to 2.0mm, bar height: 1.00mm | |
| Sheet Thickness above 2.0mm, bar height: 1.50mm | Sheet Thickness above 2.0mm, bar height: 1.50mm | |
| Width (mm) | Maximum 1500mm | Maximum 1650mm |
| Length (mm) | Maximum 6000mm | Maximum 6000mm |
| Paper interleaves | On request for selected | On request for selected |
| Normal size | 1200×2400mm, 1219×2438mm, 1219×3048mm | 1200×2400mm, 1219×2438mm, 1219×3048mm |
5086 marine grade aluminum checkered tread plate sheet applications
5086 marine-grade aluminum patterned plates have become an important material in the marine field due to their excellent performance and wide applications.
1. Ship Decks and Floors
The unique patterned design of 5086 marine-grade aluminum patterned plates provides outstanding slip resistance. This pattern increases friction, effectively reducing the risk of slips, even in wet or oily environments. Its excellent corrosion resistance makes it suitable for various ship decks and floors, enhancing safety and prolonging service life.
2. Dock Surfaces
In docks and shipyards, 5086 aluminum patterned plates offer a safe walking surface for pedestrians and workers. Their anti-slip properties and durability ensure safety under different weather conditions. The corrosion resistance of 5086 aluminum plates excels in seawater and other corrosive environments, reducing the frequency of maintenance and replacement.
3. Marine Equipment
5086 aluminum patterned plates are widely used in various marine equipment and structures, such as gangways, platforms, and ladders. These devices require high strength and corrosion resistance to withstand marine environmental challenges. The lightweight nature of 5086 aluminum patterned plates makes these devices easy to handle and install while ensuring structural stability and safety.
4. Other Marine Applications
In addition to ships and docks, 5086 aluminum patterned plates are also widely used in marine construction and offshore platforms. Their corrosion resistance and durability in saltwater environments make them ideal for marine engineering projects. These applications include both temporary structures and equipment, as well as long-term marine infrastructure.
5086 marine grade aluminum checkerboard combines corrosion resistance, strength, lightweight and slip resistance, making it ideal for a variety of marine applications.
