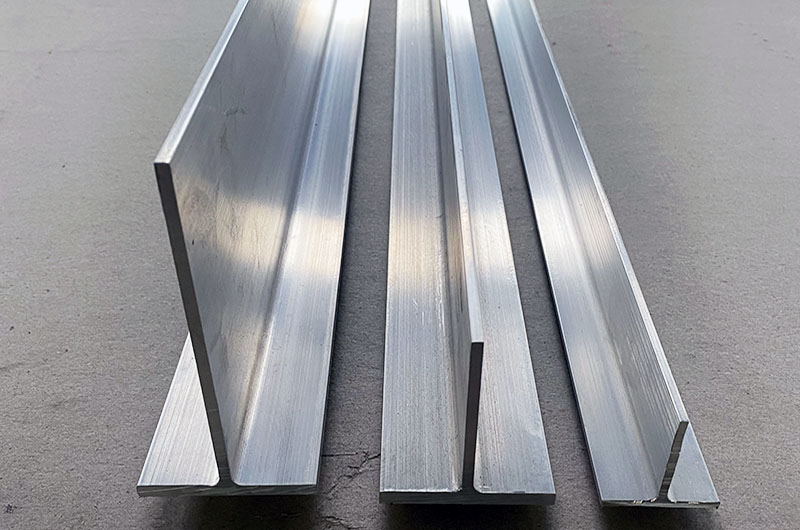

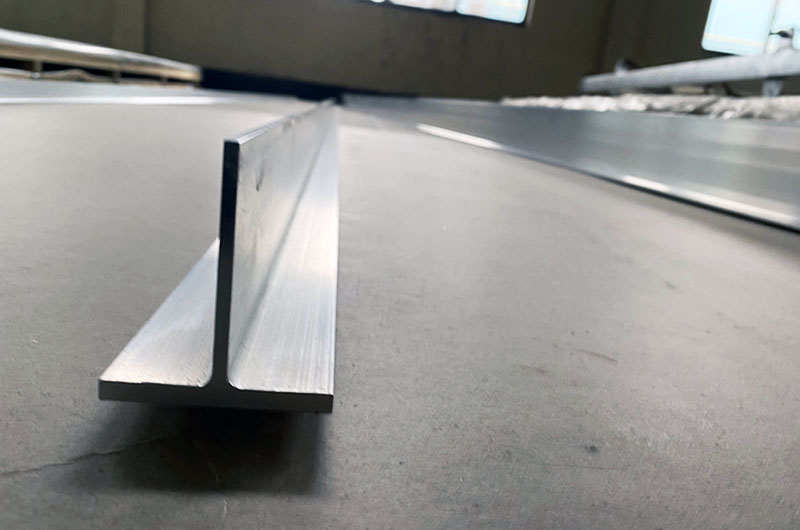

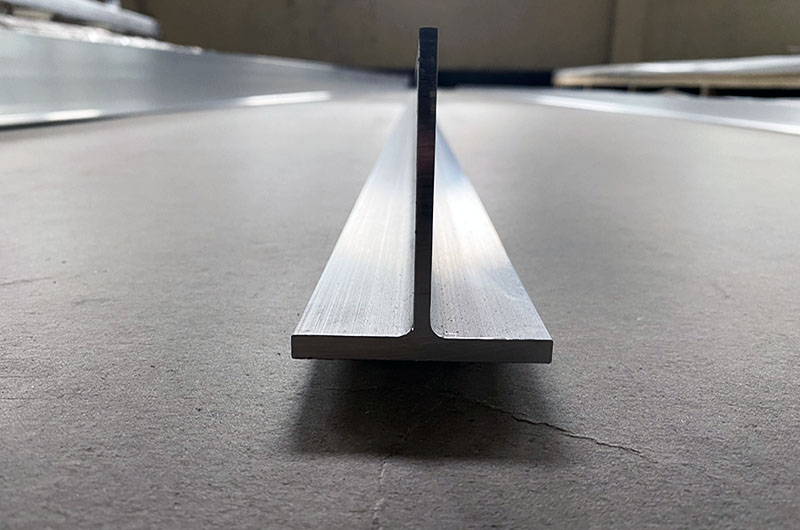

Marine Grade T-Type Aluminum Profiles
Marine T Aluminum: T-shaped profiles made from marine-grade aluminum, used for connecting or reinforcing parts at a vertical angle, typically used in the construction of frames and supports on ships.
Marine T aluminum is a type of aluminum profile specifically designed for shipbuilding, primarily used for connecting or reinforcing hull parts at a vertical angle.
The "T" shape of marine T aluminum makes it particularly suitable for providing additional strength and rigidity, commonly used in the construction of ship frames, supports, beams, and other structural components. It provides stable support and connections while maintaining a lightweight profile.

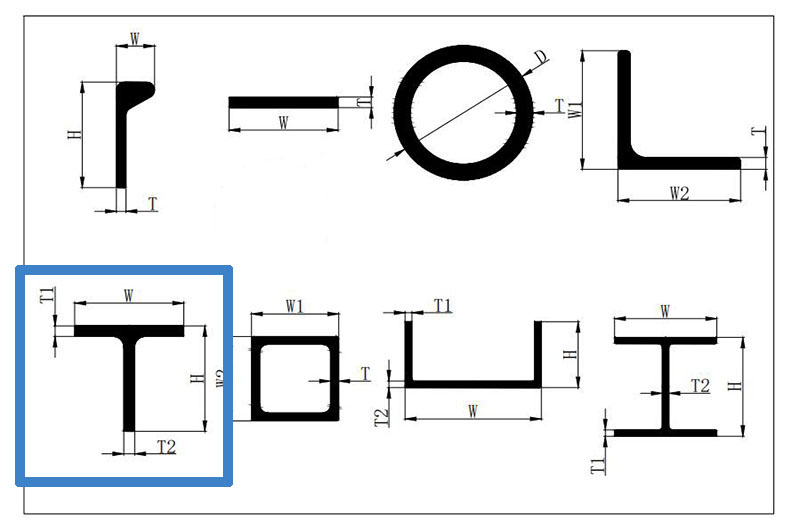

Marine T Aluminum Specifications
T aluminum profiles typically offer high strength and rigidity and can be customized in different sizes and wall thicknesses to meet specific design requirements.
| Height (H) mm | 40 | 50 | 60 | 65 | 70 | 80 |
| Width (W) mm | 40 | 50 | 60 | 70 | 80 | 80 |
| Thickness 1 (T1) mm | 4 | 4 | 5 | 6 | 6 | 7.5 |
| Thickness 2 (T2) mm | 4 | 4 | 4 | 6 | 6 | 7.5 |
Marine T Aluminum Alloys
Marine T aluminum profiles commonly use alloys such as 5083, 5052, and 6061, which offer excellent strength and corrosion resistance, making them suitable for use in shipbuilding and maintenance.
Each of these aluminum alloys—5083, 5052, and 6061—has unique characteristics that make them suitable for different shipbuilding and maintenance needs.
- 5083 aluminum alloy is particularly suitable for hull structures due to its exceptional corrosion resistance and high strength.
- 5052 aluminum alloy, known for its good corrosion resistance and moderate strength, is widely used in various ship components.
- 6061 aluminum alloy excels in strength and machinability, making it ideal for parts requiring good mechanical properties and weldability.
Choosing the appropriate aluminum alloy based on specific environmental conditions and requirements ensures the stability and long-term durability of ship structures.
5083 Marine T Aluminum
5083 T aluminum profiles are widely used in hull structures, ship frames, bulkheads, and other high-load areas. They are particularly suitable for ship parts requiring high strength and excellent corrosion resistance.
5052 Marine T Aluminum
5052 T aluminum profiles are commonly used for manufacturing ship hulls, hatches, decks, and other components, suitable for applications requiring moderate strength and corrosion resistance.
6061 Marine T Aluminum
6061 T aluminum profiles are suitable for parts requiring good mechanical properties and weldability, such as ship structural frames, supports, and equipment mounting brackets. They are particularly well-suited for applications requiring higher strength.
Standards and Specifications: The production and use of T aluminum profiles typically conform to international and domestic shipbuilding standards, such as ISO and ASTM, ensuring their performance and safety.
Marine T aluminum profiles are essential materials in shipbuilding and maintenance due to their excellent mechanical properties and corrosion resistance.
Corrosion Resistance: The corrosion resistance of marine aluminum is crucial, as it is frequently exposed to saltwater and humid environments. The chosen aluminum alloys effectively resist seawater corrosion, extending their service life.
T aluminum profiles can be installed using welding, bolting, or riveting methods. They are commonly used in ship framework structures, deck supports, internal brackets, and other areas requiring additional support.
Typical Marine Grade T-Type Aluminum Profiles Chemical Composition
| Element | 5083 Aluminum Alloy (%) | 5052 Aluminum Alloy (%) | 6061 Aluminum Alloy (%) |
| Aluminum (Al) | Remainder | Remainder | Remainder |
| Magnesium (Mg) | 4.0-4.9 | 2.2-2.8 | 0.8-1.2 |
| Silicon (Si) | 0.4-0.7 | 0.25-0.4 | 0.4-0.8 |
| Copper (Cu) | 0.1-0.3 | 0.1-0.2 | 0.15-0.40 |
| Manganese (Mn) | 0.4-0.7 | 0.15-0.5 | 0.15-0.40 |
| Chromium (Cr) | 0.05-0.25 | 0.15-0.35 | 0.04-0.35 |
| Zinc (Zn) | 0.25 (Max) | 0.1-0.25 | 0.25 (Max) |
| Iron (Fe) | 0.4-0.7 | 0.4-0.7 | 0.7 (Max) |
| Others | 0.05 (Max) | 0.1 (Max) | 0.05 (Max) |
T Aluminum Profile Applications
- Hull Framework: Used to reinforce the framework structure of the hull.
- Deck Supports: Supports the deck structure, enhancing overall strength.
- Internal Brackets: Used for various supporting structures inside the ship.
- Ship Equipment: Used for mounting and supporting various equipment and devices on the ship.
Haomei T Aluminum Inventory
| Product Name | Specifications (mm) | Brand | Mold No. | Weight per meter (kg/m) | Fixed length(m) | Previous period inventory |
| T-profile | T32x32x3/4 | 6082-T6 | YH-HZ-T32x32x3/4 | 0.58 | 6 | 106 |
| T-profile | T40*25*4 | 6082-T6 | YH-HZ-T40*25*4 | 0.681 | 6 | 279 |
| T-profile | T40*40*3 | 6082-T6 | YH-HZ-T40*40*3 | 0.646 | 6 | 719 |
| T-profile | T40*40*4 | 6082-T6 | HZAL-02 | 0.842 | 6 | 580 |
| T-profile | T45*45*4 | 6082-T6 | YH-HZ-T45*45*4 | 0.953 | 6 | 200 |
| T-profile | T50*25*3 | 6082-T6 | YH-QC-T50*25*3/3 | 0.603 | 6 | 229 |
| T-profile | T54*32*4 | 6082-T6 | YH-HZ-T54*32*4 | 0.91 | 6 | 55 |
| T-profile | T50*50*4 | 6082-T6 | YH-QC-T50*50*4 | 1.062 | 6 | 524 |
| T-profile | T50*40*3/4 | 6082-T6 | IsoT50*40*3/4 | 0.981 | 6 | 311.5 |
| T-profile | T50*50*5/5 | 6082-T6 | YH-HZ-T50*50*5/5 | 1.31 | 6 | 382 |
| T-profile | T50*50*6 | 6082-T6 | YH-HZ-T50*50*6 | 1.552 | 6 | 139 |
| T-profile | T50*80*5 | 6082-T6 | YH-HZ-T50*80*5 | 1.715 | 6 | 0 |
| T-profile | T60*40*4/7 | 6082-T6 | IsoT60*40*4/7 | 1.494 | 6 | 0 |
| T-profile | T60*40*3.5 | 6082-T6 | YH-HZ-T60*40*3.5 | 0.936 | 6 | 79 |
| T-profile | T60*40*4/4 | 6082-T6 | HZAL-T60*40*4 | 1.059 | 6 | 437 |
| T-profile | T60*40*5 | 6082-T6 | YH-HZ-T60*40*5 | 1.315 | 6 | 0 |
| T-profile | T60*40*6 | 6082-T6 | YH-HZ-T60*40*6 | 1.557 | 6 | 35 |
| T-profile | T60*50*4/6 | 6082-T6 | YH-QC-T60*50*4-6 | 1.422 | 6 | 119 |
| T-profile | T60*60*6 | 6082-T6 | YH-HZ-T60*60*6 | 1.883 | 6 | 63 |
| T-profile | T70*50*4/8 | 6082-T6 | YH-QC-HZAL-03 | 1.781 | 6 | 238 |
| T-profile | T70*60*4/5 | 6082-T6 | YH-HZ-T70*60*4/5 | 1.541 | 6 | 300 |
| T-profile | T70*60*4/6 | 6082-T6 | YH-HZ-T70*60*4/6 | 1.693 | 6 | 235 |
| T-profile | T75*60*4/5 | 6082-T6 | YH-HZ-T75*60*4/5 | 1.595 | 6 | 9 |
| T-profile | T78*80*6/8 | 6082-T6 | YH-HZ-T80*78*6*8 | 2.901 | 6 | 39 |
| T-profile | T80*40*4/6 | 6082-T6 | YH-HZ-T80*40*4/6 | 1.473 | 6 | 217 |
| T-profile | T80*40*6/8 | 6082-T6 | YH-HZ-T80*40*6/8 | 2.061 | 6 | 67 |
| T-profile | T80*60*6/6 | 6082-T6 | YH-HZ-T80*60*6/6 | 2.205 | 6 | 113 |
| T-profile | T80*100*6/10 | 6082-T6 | YH-HZ-T80*100*6*10 | 3.88 | 6 | 24 |
| T-profile | T86*40*4/6 | 6082-T6 | YH-HZ-T86*40*4/6 | 1.538 | 6 | 19 |
| T-profile | T90*45*4/6 | 6082-T6 | YH-QC-T90*45*4/6 | 1.668 | 6 | 266 |
| T-profile | T100*24*18/6 | 6082-T6 | YH-HZ-T100*24*18/6 | 2.493 | 1 | |
| T-profile | T100*45*5/8 | 6082-T6 | HZAL-4 | 2.249 | 6 | 161 |
| T-profile | T100*50*8 | 6082-T6 | YH-HZ-T100*50*8 | 3.108 | 6 | 0 |
| T-profile | T100*80*6/8 | 6082-T6 | YH-HZ-T100*80*8*6 | 3.257 | 6 | 114 |
| T-profile | T100*100*6/6 | 6082-T6 | YH-HZ-T100*100*6/6 | 3.184 | 6 | 76 |
| T-profile | T120*60*3/6 | 6082-T6 | T120*60*3/6 | 1.952 | 6 | 145 |
| T-profile | T120*60*4/5 | 6082-T6 | YH-HZ-T120*60*4/5 | 2.085 | 6 | 144 |
| T-profile | T120*60*6 | 6082-T6 | YH-HZ-T120*60*6 | 2.857 | 6 | 32 |
| T-profile | T120*80*6/8 | 6082-T6 | YH-HZ-T120*80*6/8 | 3.586 | 6 | 31 |
| T-profile | T120*80*8 | 6082-T6 | YH-HZ-T120*80*8 | 4.193 | 6 | 79 |
| T-profile | T120*100*6/10 | 6082-T6 | YH-HZ-T120*100*6/10 | 4.533 | 6 | 90 |
| T-profile | T126*60*4/6 | 6082-T6 | YH-HZ-T126*60*4*6 | 2.303 | 6 | 62 |
| T-profile | T128*80*6/8 | 6082-T6 | YH-HZ-T128*80*6*8 | 3.717 | 6 | 58 |
| T-profile | T130*100*6/10 | 6082-T6 | YH-HZ-T130*100*10*6 | 4.696 | 6 | 30 |
| T-profile | T150*80*6/8 | 6082-T6 | YH-HZ-T150*80*8*6 | 4.073 | 6 | 78 |
| T-profile | T150*80*8/8 | 6082-T6 | HZAL-26 | 4.85 | 6 | 29 |
| T-profile | T160*100*6/10 | 6082-T6 | YH-HZ-T160*100*6/10 | 5.186 | 6 | 49 |
| T-profile | T170*100*6/10 | 6082-T6 | YH-HZ-T170*100*6*10 | 5.349 | 6 | 16 |
| T-profile | T172x120x8/12 | 6082-T6 | YH-HZ-T172x120x8/12 | 7.416 | 6 | 20 |
| T-profile | T188*80*4/8 | 6082-T6 | YH3301 | 3.728 | 6 | 74 |
| T-profile | T260*100*6/10 | 6082-T6 | YH3302 | 6.912 | 6 | 18 |
| T-profile | T260*100*6/10 | 6082-T6 | YH3302 | 6.912 | 8.05 | 2 |
